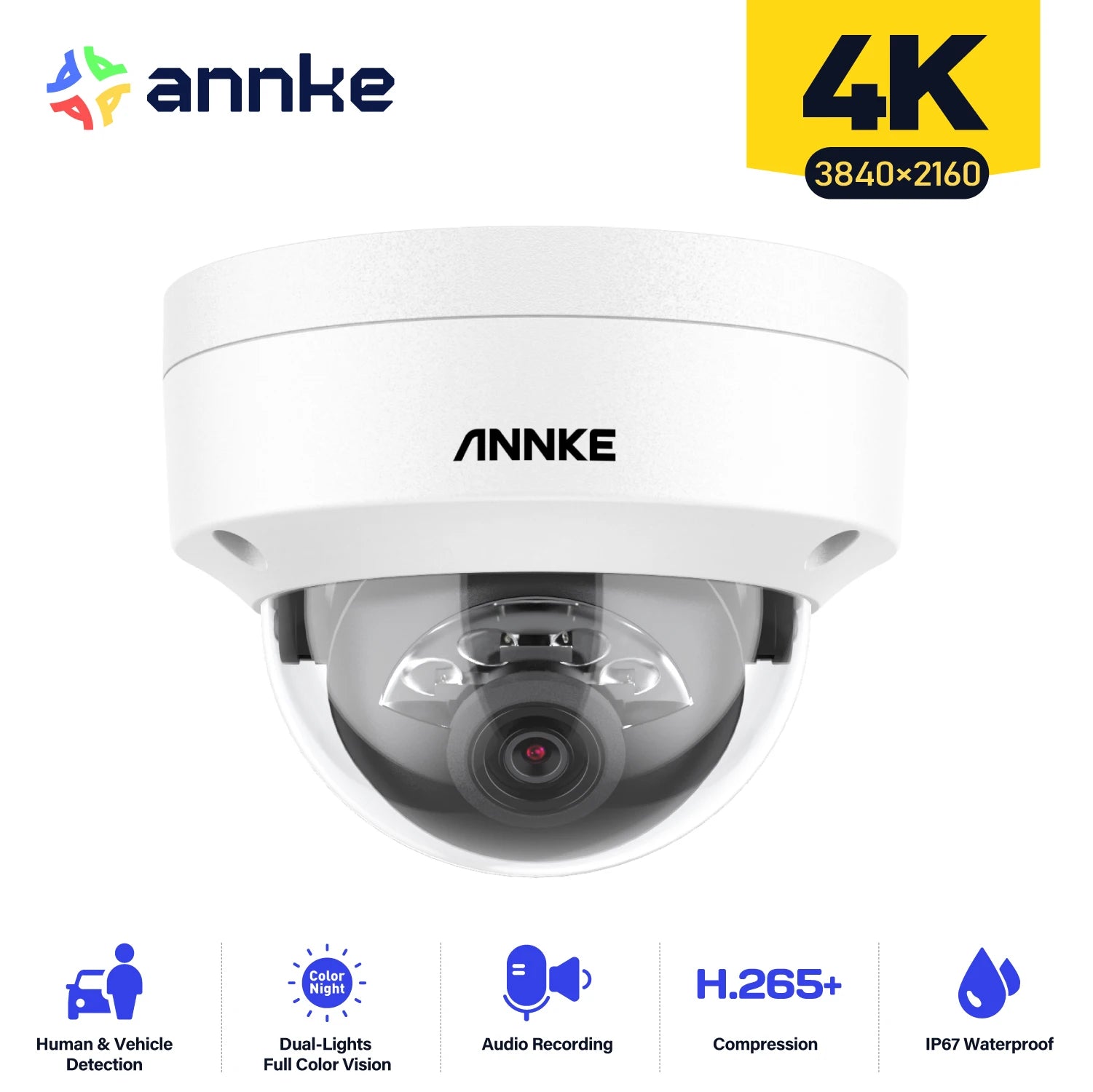

ANNKE C800 4K PoE Outdoor Security Camera IK10 8MP
ANNKE C800 4K PoE Outdoor Security Camera IK10 8MP
Couldn't load pickup availability
Deliver 8MP 4K surveillance with robust outdoor reliability, PoE power, IP67 weatherproofing, and IK08 vandal resistance.
- 8MP (3840x2160) main stream with 120 dB WDR, 3D DNR, and H.265+/H.265 compression for clear daytime and night footage.
- 4 mm F1.6 lens delivers a 78° horizontal field of view; min illumination color 0.005 lux (AGC ON), 0 lux B/W with IR.
- Smart Dual-Light combines infrared and white light up to 30 m; built-in microphone enables real-time audio alongside video.
- Power via PoE (802.3af) or DC12V; microSD/SDHC/SDXC up to 512 GB for on-board storage; IP67 and IK08 rated for outdoor use.
IP Camera | ||
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
4 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |

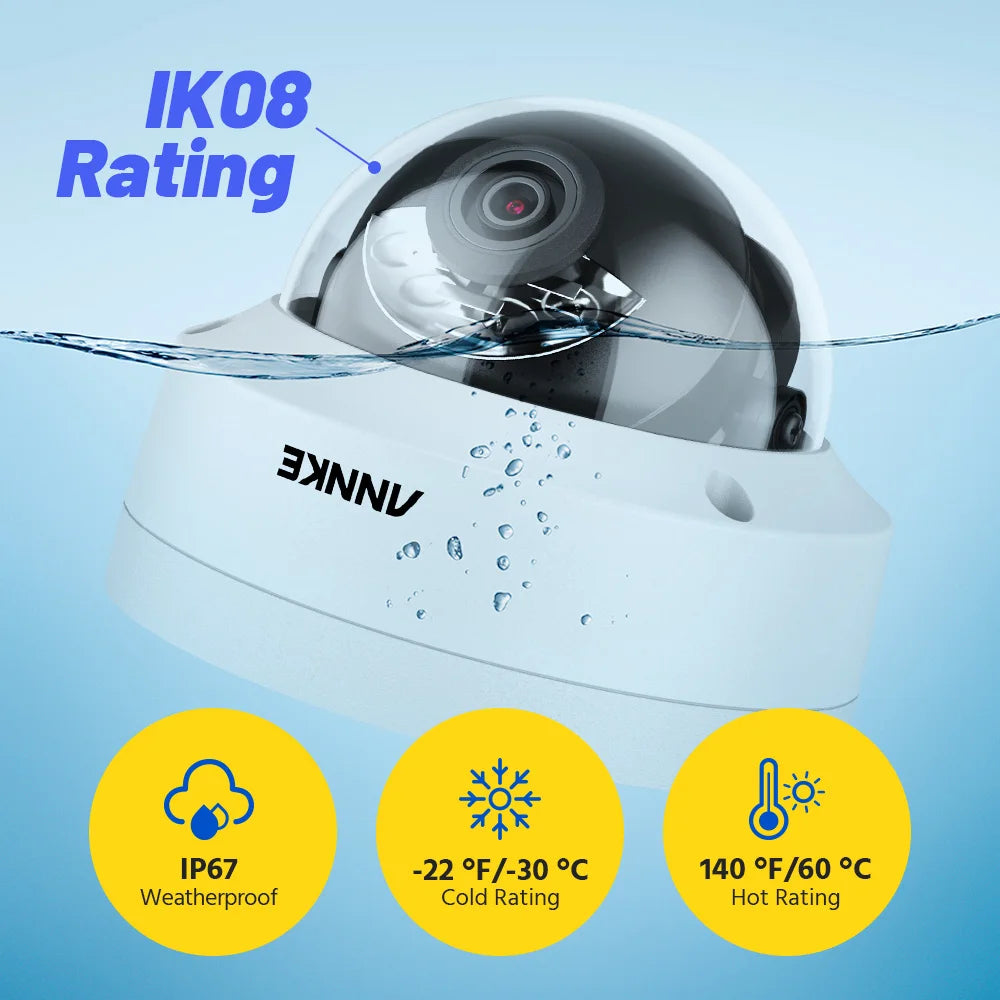

IP67 & IK08 |
|
Dimension (L X W X H) |
Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84") |
|
Weight |
1.2 lb./550 g |
|
